Blue Smart IP65 Lader 24 8 DC connector
€138,70
Angebotspreis
€138,70
Normaler Preis
€146,00
BPC240831034R

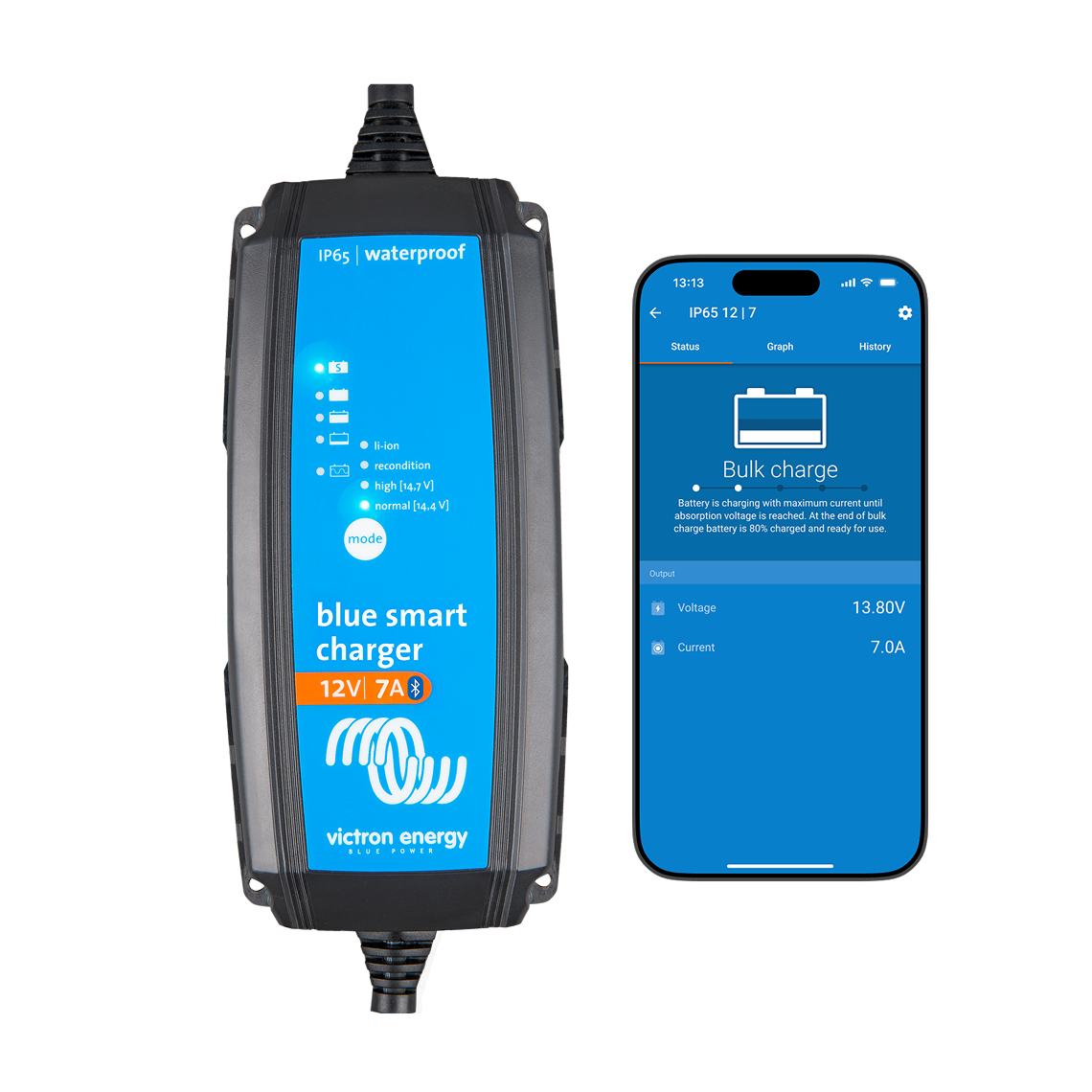

De Blue Smart IP65-lader is de nieuwe professionele acculader met ingebouwde Bluetooth. De Blue Smart IP65-lader kan worden gebruikt voor apparaten in uw werkplaats en voor motorvoertuigen, zoals (klassieke) auto's, motoren, boten en campers.
Nieuw: IP65 12/5 is vervangen door kleiner equivalent model: IP65s 12/5
Specificaties
| Kenmerk | Waarde |
|---|---|
| acConnectionTerminalType | Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ) |
| acInputFrequencyRange | [45, 65] Hz |
| aCInputVoltageRange | [180, 265] VAC |
| backCurrentDrain | 1 mA |
| backCurrentDrainMonth | 0.7 Ah/mo |
| batteryConnectionTerminalType | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
| batteryVoltageNominal | 24 V |
| bluetooth | |
| chargeAlgorithm | Adaptive, 7-stage |
| chargeCurrentLow | 3 A |
| chargeCurrentNormal | 8 A |
| chargeVoltageAbsorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| chargeVoltageFloat | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| chargeVoltageStorage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| depth | 190 mm |
| efficiency | 95 % |
| emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| height | 60 mm |
| immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| lithiumCompatible | True |
| maxHumidity | 95 % |
| operatingTemperatureRange | |
| ouputFullRated | |
| powerSupplyMode | True |
| Programable | True |
| protectionCategory | IP65 |
| protections | Battery reverse polarity,Output short-circuit,Over temperature |
| safety | EN-IEC 60335-1,EN-IEC 60335-2-29 |
| standbyPowerConsumption | 0.5 W |
| temperatureCompensation | |
| weight | 0.9 kg |
| width | 105 mm |
