Omvormer C 24 2000
€675,45
Angebotspreis
€675,45
Normaler Preis
€711,00
Zu Produktinformationen springen
Auf Lager
Terug naar de winkel
Omvormer C 24 2000
€675,45
Angebotspreis
€675,45
Normaler Preis
€711,00
CIN242200000

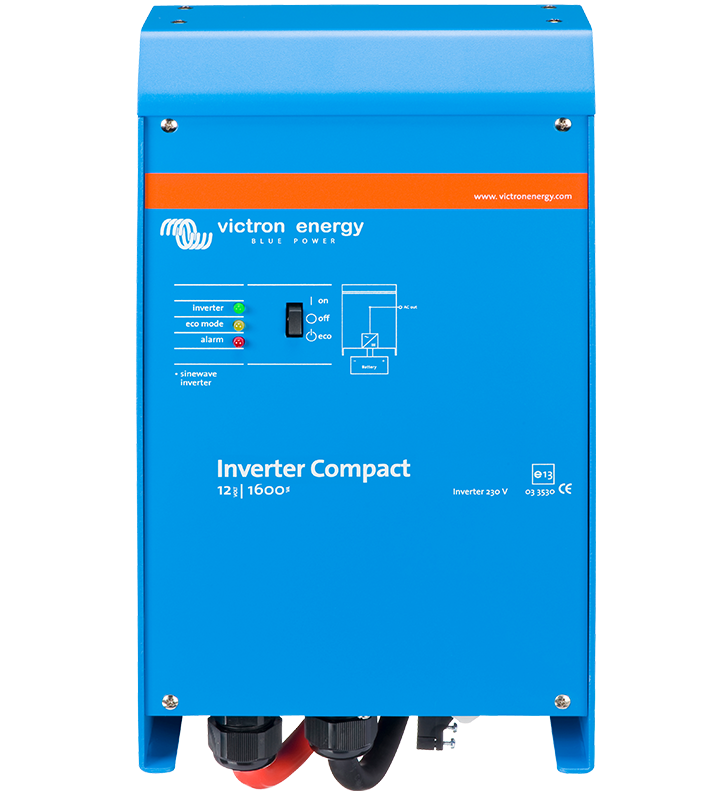

De Phoenix Inverter Compact is een zuivere sinusgolf-omvormer met een hoge efficiëntie. De omvormer is ontwikkeld voor professionele taken en geschikt voor de meest uiteenlopende toepassingen.
De Phoenix Inverter Compact is verkrijgbaar van 1200VA tot 2000VA in 12V of 24V.
Specificaties
| Kenmerk | Waarde |
|---|---|
| acConnection | Spring clamp |
| aCOutputVoltage | 230 V |
| batteryConnection | M8 bolts |
| batteryVoltageNominal | 24 V |
| colour | Blue (RAL 5012) |
| communicationPort | VE.Bus |
| contPowerVA25 | 2,000 VA |
| contPowerW25 | 1,600 W |
| contPowerW40 | 1,450 W |
| contPowerW65 | 1,000 W |
| Cooling | True |
| dCInputVoltageRange | [19, 33] V |
| depth | 125 mm |
| eMC | EN 55014-1,EN 55014-2 |
| frequencySelect | 50Hz or 60Hz |
| fullyProgramable | True |
| height | 520 mm |
| material | Aluminium |
| maxEfficiency | 92 % |
| maxHumidity | 95 % |
| operatingTempRange | |
| parallel3phase | True |
| peakPowerRating | 4,000 W |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protectionCategory | IP21 |
| protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| relayTerminal | Screw terminal 3-pole |
| remoteOnOffTerminal | True |
| remoteTerminal | Screw terminal two pole |
| safety | EN-IEC 60335-1 |
| weight | 12 kg |
| width | 255 mm |
| zeroLoadPower | 11 W |
| zeroLoadPowerAES | 9 W |
| zeroLoadPowerSearch | 4 W |
Downloads
Datasheet
Enclosure dimension
⬇️ Inverter Compact 12V / 24V 2000VA
⬇️ Inverter Compact 12V / 24V 2000VA (stp)
⬇️ Inverter Compact 12V / 24V 2000VA (3D)
