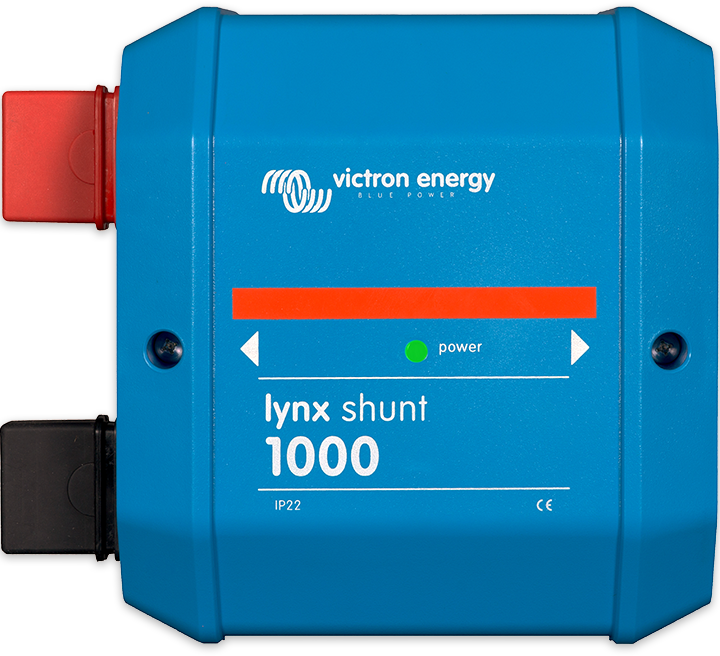

Lynx Shunt VE Can M10
€360,05
Angebotspreis
€360,05
Normaler Preis
€379,00
LYN040102110
De Lynx Shunt VE.Can is een intelligente 1000A shunt met locatie voor een zekering (niet inbegrepen), de geïntegreerde accumonitor controleert nauwkeurig de laadtoestand van uw accu. Gebruik een GX-toestel (bv. Cerbo GX) voor het lezen van de informatie. Onderdeel van het modulaire Lynx-distributiesysteem.
Specificaties
| Kenmerk | Waarde |
|---|---|
| busbarConnections | M10 |
| busbarDimensions | 8mm x 30mm |
| busbarMaterial | Tinned copper |
| colour | Blue (RAL 5012) |
| currentRating | 1,000 A |
| dataConnection | |
| depth | 80 mm |
| fuseConnections | M8 |
| fuseDummy | Included |
| height | 190 mm |
| material | ABS |
| maxHumidity | 95 % |
| operatingTempRange | |
| powerConnectionDistributor | RJ10 (RJ10 cables ship with each Lynx Distributor) |
| powerConsumption | 60mA (12V) / 33mA (24V) / 20mA (48V) |
| programmableRelay | Potential free alarm contact: 3A at 30VDC or 250VAC |
| protectionCategory | IP22 |
| relayConnection | Screw terminals |
| reversePolarityProtection | No |
| storageTempRange | |
| systemVoltages | 12V or 24V or 48V |
| temperatureSensorConnection | Screw terminals |
| veCan | RJ45 (Two RJ45 terminators included) |
| voltageRange | [9, 70] V |
| weight | 1.4 kg |
| width | 180 mm |
