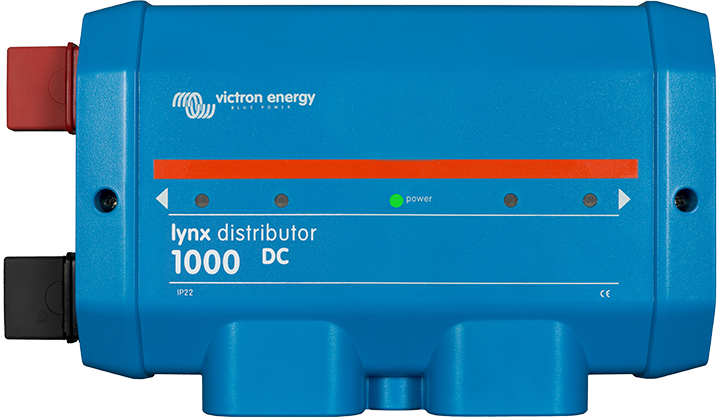

Lynx Distributor M10
€204,25
Angebotspreis
€204,25
Normaler Preis
€215,00
LYN060102010
Een modulaire DC-rail met ruimte voor vier DC-zekeringen. De Lynx Distributor bewaakt de status van elke zekering en geeft de toestand weer met een led aan de voorzijde. De Lynx Distributor maakt deel uit van het modulair Lynx DC Distribution system, beschikbaar in M8- en M10-modellen.
Specificaties
| Kenmerk | Waarde |
|---|---|
| busbarConnections | M10 |
| busbarDimensions | 8mm x 30mm |
| busbarMaterial | Tinned copper |
| colour | Blue (RAL 5012) |
| currentRating | 1,000 A |
| dataConnection | 40 cm RJ10 cable (included) |
| depth | 80 mm |
| fuseConnections | 3/8" |
| height | 170 mm |
| material | ABS |
| maxHumidity | 95 % |
| operatingTempRange | |
| powerConsumption | Maximum 100mA with all LEDs illuminated (Powered from Lynx Shunt VE.Can or Lynx Smart BMS) |
| protectionCategory | IP22 |
| reversePolarityProtection | Yes (he RJ10 cable connection is not protected against reverse polarity) |
| storageTempRange | |
| systemVoltages | 12V or 24V or 48V |
| voltageRange | [9, 60] V |
| weight | 2.2 kg |
| width | 290 mm |
