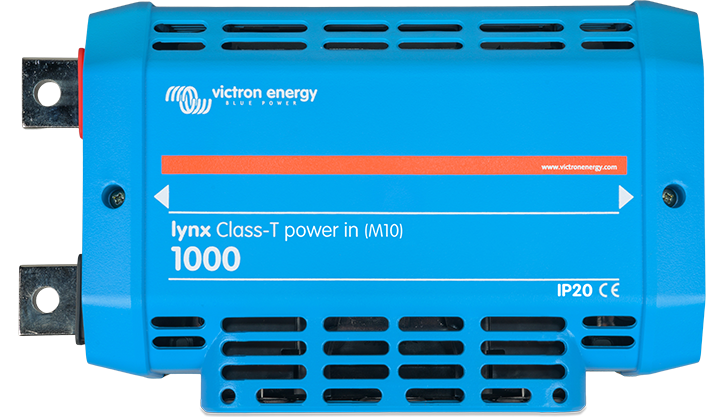

Lynx Class T Power In M10
€171,95
Angebotspreis
€171,95
Normaler Preis
€181,00
Zu Produktinformationen springen
Auf Lager
Terug naar de winkel
Lynx Class T Power In M10
€171,95
Angebotspreis
€171,95
Normaler Preis
€181,00
LYN060404010
De Lynx Class-T Power In verbindt en zekert tot twee reeksen lithium-accu's. Het heeft een positieve en negatieve verdeelrail, en aansluitingen voor twee Class-T zekeringen en ook een aansluiting om het DC-systeem te aarden. De beschikbare Class T-zekeringen in 225 A, 250 A, 350 A en 400 A, moeten apart gekocht worden.
Gebruik, voor installaties met drie of meer reeksen lithium-accu's, meerdere Lynx Class-T modules. Als een kerncomponent van het Lynx-verdeelsysteem integreert de Lynx Class-T naadloos met alle andere M10 Lynx-producten.Specificaties
| Kenmerk | Waarde |
|---|---|
| busbarConnections | M10 |
| busbarDimensions | 8mm x 30mm |
| busbarMaterial | Tinned copper |
| colour | Blue (RAL 5012) |
| currentRating | 1,000 A |
| depth | 97 mm |
| fuseConnections | 3/8" |
| height | 170 mm |
| material | ABS |
| maxHumidity | 95 % |
| operatingTempRange | |
| protectionCategory | IP22 |
| storageTempRange | |
| voltageRange | [9, 60] V |
| weight | 2.1 kg |
| width | 280 mm |
Downloads
Enclosure dimension
High quality photo
⬇️ Lynx Class-T Power In (M10) (top)
⬇️ Lynx Class-T Power In (M10) (left)
⬇️ Lynx Class-T Power In (M10) (right)
⬇️ Lynx Class-T Power In (M10) (right-no caps)
⬇️ Lynx Class-T Power In (M10) (front)
⬇️ Lynx Class-T Power In (M10) (bottom)
⬇️ LYN060404010 Lynx Class-T Power In (M10) (inside)
⬇️ Lynx Class-T Power In (M10) (with busbar)
Product Manual
Promo video
System schematic
⬇️ Genless monohull with Victron MultiPlus Lynx Smart BMS NG 600Ah NG Li HP Alternator Wakespeed WS500-Pro regulator
⬇️ Genless catamaran with Victron MultiPlus paralleled Lynx Smart BMS NG 800Ah NG Li HP Alternators Wakespeed WS500-Pro regulators
⬇️ Genless monohull with Victron MultiPlus Lynx Smart BMS NG 600Ah NG Li HP Alternator ARCO Zeus regulator
⬇️ Genless catamaran with Victron MultiPlus paralleled Lynx Smart BMS NG 800Ah NG Li HP Alternators ARCO Zeus regulators
⬇️ Quattro-II 5kVA 230VAC 24VDC 600Ah Li NG Lynx Smart BMS NG distributors Cerbo GX touch generator MPPT Extra Alternator Zeus regulator
⬇️ RV with Quattro 5kVA 120V generator 600Ah 24V Li-NG Lynx Class-T power in Smart BMS-NG Distributors Cerbo GX Touch 70 SBP-220 MPPT 100/50 Arco Zeus Alternator Orion XS 1400 12V Li battery
⬇️ RV with dual MultiPlus-II 5kVA split phase 2x600Ah 24V Li-NG parallel Lynx Smart BMS-NG Class-T Power In Distributors Cerbo GX Touch 70 SBP-220 MPPT 100/50 Arco Zeus Alternator Orion XS 1400 12V Li battery
⬇️ VE.Direct drawing with IP43 Smart Charger 12/50-1 Inverter 800W 2x150Ah Li-NG smallBMS-NG Cyrix Li charge SBP 220 MPPT 100/50 Orion XS BMV-712
⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x200Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion XS
⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion Tr Smarts
⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 extra Alternator WS500-Pro
