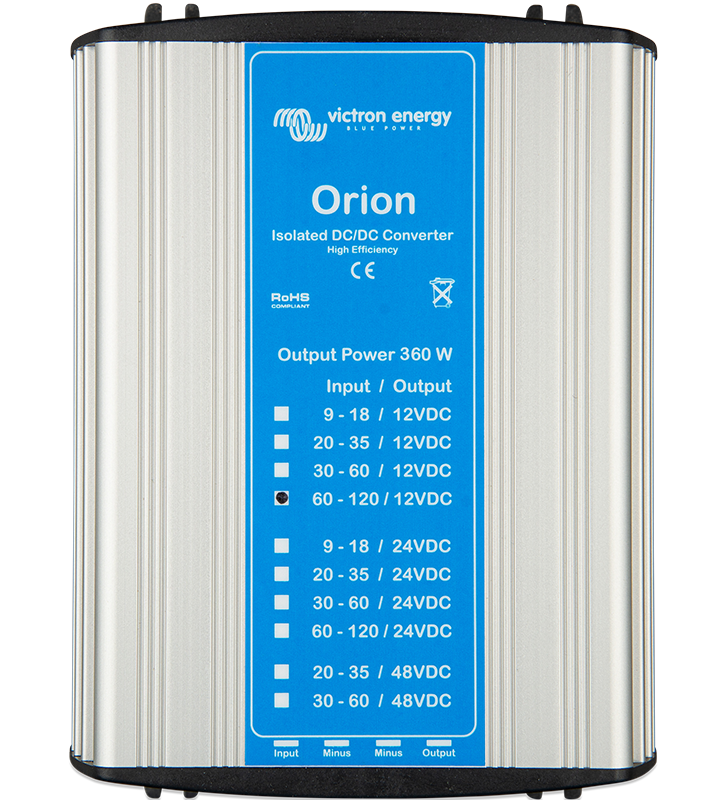

Orion 110 12 30A 360W
€370,50
Angebotspreis
€370,50
Normaler Preis
€390,00
Zu Produktinformationen springen
Auf Lager
Terug naar de winkel
.
Orion 110 12 30A 360W
€370,50
Angebotspreis
€370,50
Normaler Preis
€390,00
ORI110123610
Specificaties
| Kenmerk | Waarde |
|---|---|
| colour | Grey |
| continuousOutputCurrent | 30 A |
| dcConnectionTerminalType | Faston tab 6.3 mm |
| depth | 190 mm |
| emission | EN 55014-1,EN-IEC 61000-6-3 |
| fanAssistedCooling | True |
| galvanicIsolation | True |
| height | 82 mm |
| immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| inputVoltageRange | [60, 140] V |
| Isolation | 400 Vrms |
| material | Anodized aluminium |
| maxEfficiency | 85 |
| maxHumidity | 95 % |
| offLoadCurrent | 25 |
| operatingTempRange | |
| outputVoltage | 12.5 V |
| outputVoltageNoise | 50 mVrms |
| outputVoltageStability | 2 % |
| outputVoltageTolerance | 3 % |
| powerRating | 360 W |
| protections | Battery reverse polarity (fuse),Overload,Overcurrent,Over temperature |
| relayTerminalConnection1 | |
| remoteOnOffTerminalConnection | |
| safety | EN 60950 |
| temperatureSensor | |
| weight | 1.4 kg |
| width | 132 mm |
Downloads
Datasheet
Enclosure dimension
⬇️ Orion DC-DC Converters 110V, Isolated
⬇️ Orion DC-DC Converters 110V, Isolated (3D)
⬇️ Orion DC-DC Converters 110V, Isolated (stp)
High quality photo
⬇️ Orion 11012-30A (360W) Isolated DC-DC converter (top)
⬇️ Orion 11012-30A (360W) Isolated DC-DC converter (side)
⬇️ Orion 11012-30A (360W) Isolated DC-DC converter (right)
⬇️ Orion 11012-30A (360W) Isolated DC-DC converter (left)
