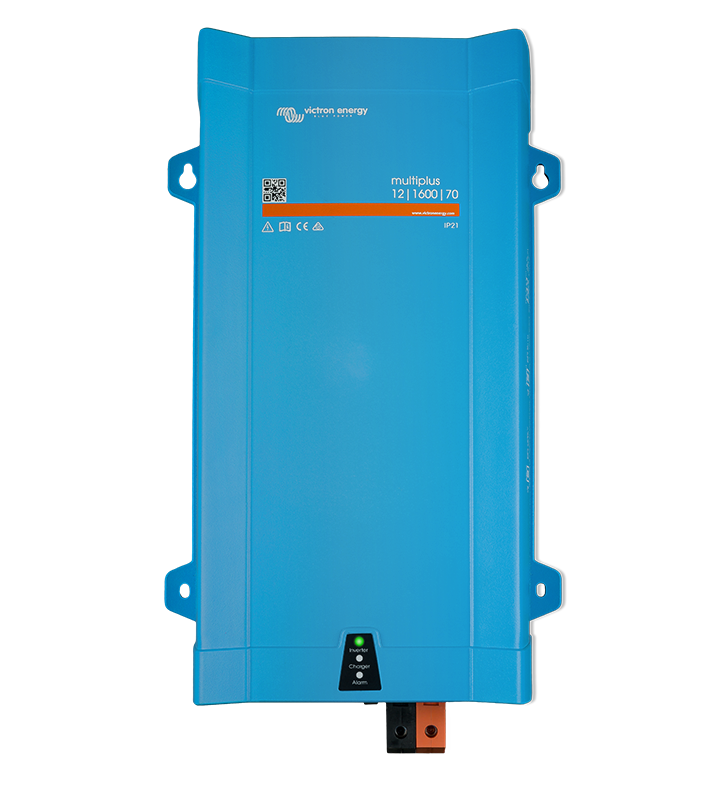

MultiPlus 12 1600 70 16

MultiPlus 12 1600 70 16

€634,60
€634,60 €668,00
Zu Produktinformationen springen
MultiPlus 12 1600 70 16
  • MultiPlus 12 1600 70 16
MultiPlus 12 1600 70 16

MultiPlus 12 1600 70 16

€634,60
€634,60 €668,00
Auf Lager
PMP122160000
Terug naar de winkel
De MultiPlus nieuwe stijl gaat de eerdere MultiPlus Compact-reeks vervangen. Het is een krachtige zuivere sinusgolfomvormer, een geavanceerde acculader met adaptieve laadtechnologie en een supersnelle AC-wisselschakelaar in een enkele compacte behuizing.

Specificaties

Kenmerk Waarde
aCConnectionTerminalType G-ST18i plug
aCInputFrequencyRange [45, 65] Hz
aCInputVoltageRange [187, 265] VAC
aCOutputFrequency 50 Hz
aCOutputVoltage 230 VAC
antiIslandingStandard Please consult the certificates on our website
automotiveDirective ECE R10-5
batteryVoltageNominal 12 V
chargeAlgorithm Adaptive, 4-stage
chargeVoltageAbsorption 14.4 VDC
chargeVoltageFloat 13.8 VDC
chargeVoltageStorage 13.2 VDC
colour Blue (RAL 5012)
communicationPort VE.Bus
communicationPortGeneral True
computerProgramming True
contPowerVA25 1,600 VA
contPowerW25 1,300 W
contPowerW40 1,100 W
contPowerW65 800 W
dCInputVoltageRange [9.5, 17] VDC
depth 120 mm
dIPSwitchesProgramming True
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
fanAssistCooling True
height 470 mm
internalDCFuseRating 200 A
material Steel
maxAltitude 2,000 m
maxEfficiency 93 %
maxHumidity 95 %
maximumBatteryChargeCurrent 70 A
operatingTempRange
ovciiiIcw
parallelOperation True
peakPowerRating 2,800 W
powerAssist True
powerControl True
programmableRelay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory IP21
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
relayTerminal Screw terminal 3-pole
remoteTerminal On / Off
remoteTerminalType Screw terminal two pole
safety EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
starterBatteryChargeCurrent 1 A
starterBatteryChargeOutput True
temperatureSensor Included
threePhaseOperation True
transferSwitchCurrentRating 35 A
upsStandard Please consult the certificates on our website
vebusTerminalType Two RJ45 terminals
weight 10.2 kg
width 265 mm
zeroLoadPower 10 W
zeroLoadPowerSearch 3 W

Downloads

Brochure

Datasheet

Enclosure dimension

High quality photo

Product Manual

Promo video

System schematic

Technical information

Video
