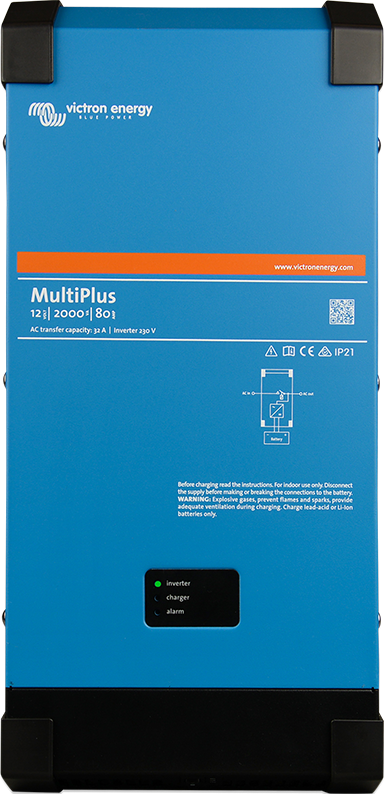

MultiPlus 12 2000 80 32
  • MultiPlus 12 2000 80 32
MultiPlus 12 2000 80 32

MultiPlus 12 2000 80 32

€936,70
€936,70 €986,00
Auf Lager
PMP122200000
Terug naar de winkel
De MultiPlus, zoals de naam al doet vermoeden, is een gecombineerde omvormer en lader in een elegante behuizing. De vele functies omvatten een echte sinusgolf omvormer, adaptief laden, hybride PowerAssist technologie en meerdere systeemintegratie functies.

Specificaties

Kenmerk Waarde
aCConnectionTerminalType Screw terminals
aCInputFrequencyRange [45, 65] Hz
aCInputVoltageRange [187, 265] VAC
aCInputVoltageRange1 [187, 265] VAC
aCOutputFrequency 50 Hz
aCOutputVoltage 230 VAC
antiIslandingStandard Please consult the certificates on our website
automotiveDirective ECE R10-5
batteryConnectionTerminalType
batteryVoltageNominal 12 V
chargeAlgorithm Adaptive, 4-stage
chargeVoltageAbsorption 14.4 VDC
chargeVoltageFloat 13.8 VDC
chargeVoltageStorage 13.2 VDC
colour Blue (RAL 5012)
communicationPort VE.Bus
communicationPortGeneral True
computerProgramming True
contPowerVA25 2,000 VA
contPowerW25 1,600 W
contPowerW40 1,400 W
contPowerW65 1,000 W
dCInputVoltageRange [9.5, 17] VDC
depth 147 mm
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
fanAssistCooling True
height 506 mm
material Steel chassis with ABS cover
maxAltitude 2,000 m
maxEfficiency 93 %
maxHumidity 95 %
maximumBatteryChargeCurrent 80 A
operatingTempRange
ovciiiIcw
parallelOperation True
peakPowerRating 3,500 W
powerAssist True
powerControl True
programmableRelay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory IP21
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
relayTerminal Screw terminal 3-pole
remoteTerminal On / Off
remoteTerminalType Screw terminal two pole
safety EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
starterBatteryChargeCurrent 1 A
starterBatteryChargeOutput True
temperatureSensor Included
threePhaseOperation True
transferSwitchCurrentRating 35 A
upsStandard Please consult the certificates on our website
vebusTerminalType Two RJ45 terminals
weight 15.5 kg
width 236 mm
zeroLoadPower 10 W
zeroLoadPowerSearch 3 W

Downloads

Datasheet

Enclosure dimension

High quality photo

Promo video

System schematic
