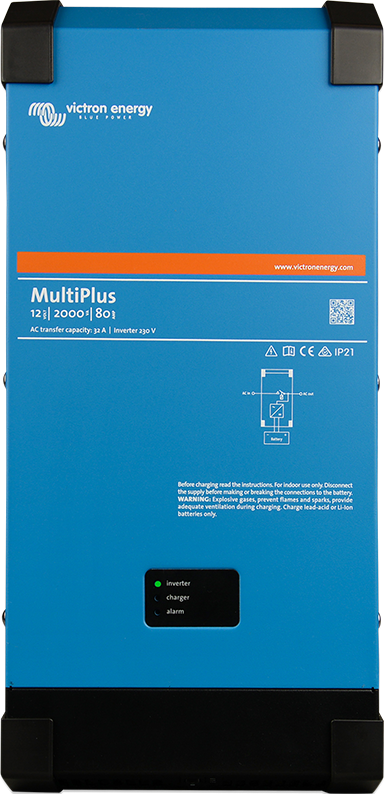

MultiPlus 12 2000 80 50 120V UL 458

MultiPlus 12 2000 80 50 120V UL 458

€874,00
€874,00 €920,00
Zu Produktinformationen springen
MultiPlus 12 2000 80 50 120V UL 458
  • MultiPlus 12 2000 80 50 120V UL 458
MultiPlus 12 2000 80 50 120V UL 458

MultiPlus 12 2000 80 50 120V UL 458

€874,00
€874,00 €920,00
Auf Lager
PMP122200102
Terug naar de winkel
De MultiPlus, zoals de naam al doet vermoeden, is een gecombineerde omvormer en lader in een elegante behuizing. De vele functies omvatten een echte sinusgolf omvormer, adaptief laden, hybride PowerAssist technologie en meerdere systeemintegratie functies.

Specificaties

Kenmerk Waarde
aCConnectionTerminalType
aCInputFrequencyRange [55, 65] Hz
aCInputVoltageRange [95, 140] VAC
aCOutputFrequency 60 Hz
aCOutputVoltage 120 VAC
antiIslandingStandard
automotiveDirective ECE R10-5
batteryConnectionTerminalType M8 bolts
batteryVoltageNominal 12 V
chargeAlgorithm Adaptive, 4-stage
chargeVoltageAbsorption 1.4 VDC
chargeVoltageFloat 13.8 VDC
chargeVoltageStorage 13.2 VDC
colour Blue (RAL 5012)
communicationPort VE.Bus
computerProgramming True
contPowerVA25 2,000 VA
contPowerW25 1,600 W
contPowerW40 1,400 W
contPowerW65 1,000 W
dCInputVoltageRange [9.5, 17] VDC
depth 147 mm
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
externalAcCurrentSensor
fanAssistCooling True
frequencySelect
height 506 mm
material Steel
maxAcInputCurrent 50 A
maxEfficiency 93 %
maxHumidity 95 %
maximumBatteryChargeCurrent 80 A
operatingTempRange
ovciiiIcw
parallelOperation True
peakPowerRating 3,500 W
powerAssist True
powerControl True
programmableRelay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory IP22
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple,Overcurrent,Automatic load disconnect
relayTerminal Screw terminal 3-pole
remoteTerminal On / Off / Charger only
remoteTerminalType Screw terminal two pole
safety EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
starterBatteryChargeCurrent 1 A
starterBatteryChargeOutput True
temperatureSensor Included
threePhaseOperation True
upsStandard
vebusTerminalType Two RJ45 terminals
weight 15.5 kg
width 236 mm
zeroLoadPower 10 W
zeroLoadPowerSearch 3 W

Downloads

Datasheet

Enclosure dimension

High quality photo

Promo video

System schematic
