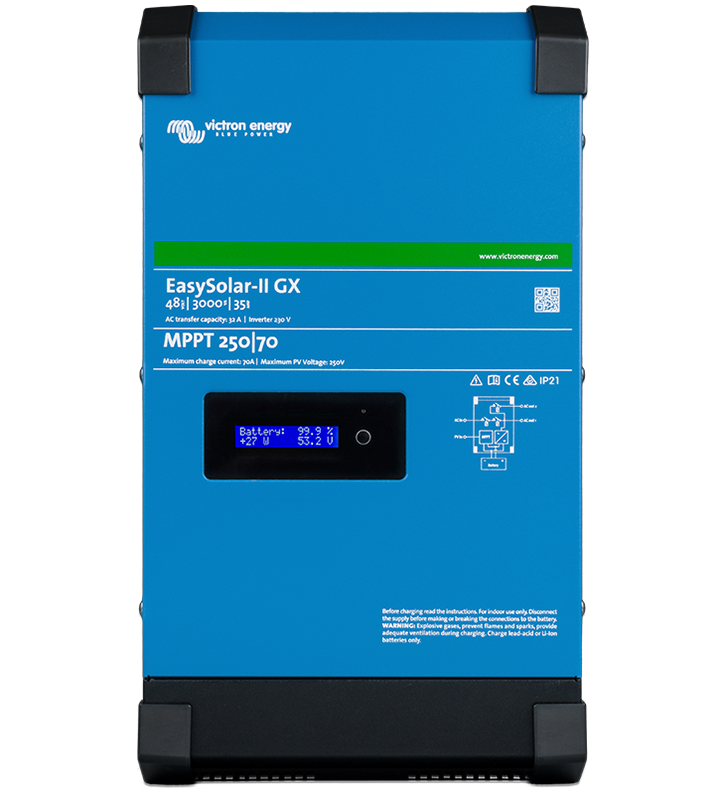

EasySolar II 48 3000 35 32 MPPT 250 70 GX

EasySolar II 48 3000 35 32 MPPT 250 70 GX

€1.214,10
€1.214,10 €1.278,00
Zu Produktinformationen springen
EasySolar II 48 3000 35 32 MPPT 250 70 GX
  • EasySolar II 48 3000 35 32 MPPT 250 70 GX
EasySolar II 48 3000 35 32 MPPT 250 70 GX

EasySolar II 48 3000 35 32 MPPT 250 70 GX

€1.214,10
€1.214,10 €1.278,00
Auf Lager
PMP482307010
Terug naar de winkel
De EasySolar-II GX combineert een MPPT Zonneladingsregelaar, een inverter/oplader en besturingscentrum in één behuizing. Het product is makkelijk te installeren, met een minimum aan bedrading.

Specificaties

Kenmerk Waarde
aCConnectionTerminalType
aCInputFrequencyRange [45, 65] Hz
aCInputVoltageRange [187, 265] VAC
aCOutputFrequency 50 Hz
aCOutputVoltage 230 VAC
antiIslandingStandard See our website
auxAcCurrent 32 A
AuxiliaryOutput True
batteryConnectionTerminalType M8 bolts
batteryVoltageNominal 48 V
chargeAlgorithm Adaptive, 4-stage
chargeAlgorithm1 Adaptive, 4-stage
chargeVoltageAbsorption 57.6 VDC
chargeVoltageAbsorption1 57.6 VDC
chargeVoltageFloat 55.2 VDC
chargeVoltageFloat1 55.2 VDC
chargeVoltageStorage 52.8 VDC
colour Blue (RAL 5012)
communicationPort VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet
computerProgramming True
contPowerVA25 3,000 VA
contPowerW25 2,400 W
contPowerW40 2,200 W
contPowerW55 1,700 W
dCInputVoltageRange [38, 66] VDC
depth 237 mm
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
externalAcCurrentSensor 50A or 100A (optional)
fanAssistCooling True
height 499 mm
material Steel
maxAcInputCurrent 32 A
maxAppFeedinPower 3,000 VA
maxEfficiency 94 %
maxHumidity 95 %
maxiEfficiencySolarCharger 99 %
maximumBatteryChargeCurrent 70 A
maxOutputCurrentSolar 70 A
maxPvOpenCircuitVoltage 250 V
maxPvPower 4,000 W
operatingTempRange
peakPowerRating 5,500 W
powerAssist True
powerControl True
programmableRelay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory IP21
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
pVConnectionTerminalType M6 bolts
relayTerminal Screw terminal 3-pole
remoteTerminal On / Off
remoteTerminalType Screw terminal two pole
safety EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2
selfConsumption 20 mA
SolarChargerModel MPPT 250/70-Tr
temperatureSensor Included
transferSwitchCurrentRating 32 A
vebusTerminalType Two RJ45 terminals
weight 26 kg
width 268 mm
zeroLoadPower 13 W
zeroLoadPowerAES 9 W
zeroLoadPowerSearch 3 W

Downloads

Datasheet

Enclosure dimension

High quality photo

Product Manual

Promo video

Technical information

Video
