Quattro 48 15000 200 100 100 277V

Quattro 48 15000 200 100 100 277V

€3.133,10
€3.133,10 €3.298,00
Zu Produktinformationen springen
Quattro 48 15000 200 100 100 277V
  • Quattro 48 15000 200 100 100 277V
Quattro 48 15000 200 100 100 277V

Quattro 48 15000 200 100 100 277V

€3.133,10
€3.133,10 €3.298,00
Auf Lager
QUA483150100
Terug naar de winkel

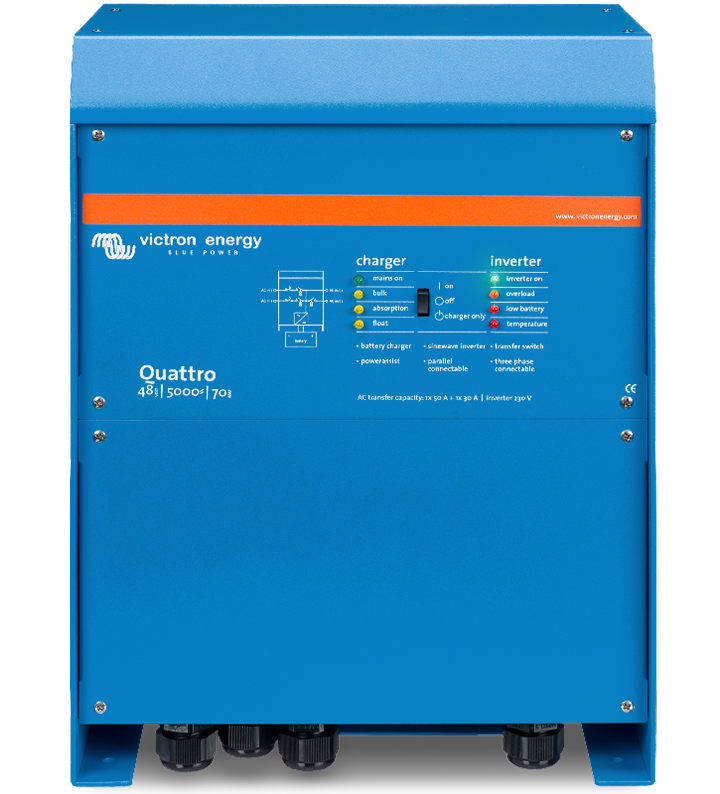

Net als de MultiPlus is de Quattro ook een omvormer en lader ineen. Daarnaast accepteert deze twee AC-ingangen en maakt automatisch verbinding met de actieve bron. De vele eigenschappen bestaan uit een zuivere sinusgolfomvormer, adaptief opladen, hybride PowerAssist-technologie en meerdere systeemintegratiefuncties, zoals drie- of eenfasebesturing en parallelle besturing.

Specificaties

Kenmerk Waarde
aCConnectionTerminalType
aCInputFrequencyRange [45, 65] Hz
aCInputVoltageRange2 [230, 299] V
aCOutputFrequency 60 Hz
aCOutputVoltage 277 VAC
antiIslandingStandard See our website
AuxiliaryOutput True
batteryConnectionTerminalType
batteryVoltageNominal 48 V
chargeAlgorithm Adaptive, 4-stage
chargeVoltageAbsorption 57.6 VDC
chargeVoltageFloat 55.2 VDC
chargeVoltageStorage 52.8 VDC
colour Blue (RAL 5012)
communicationPort VE.Bus
communicationPortGeneral True
contPowerVA25 15,000 VA
contPowerW25 12,000 W
contPowerW40 10,000 W
contPowerW65 7,000 W
dCInputVoltageRange [38, 66] VDC
depth 344 mm
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
fanAssistCooling True
frequencySelect 50Hz or 60Hz
height 572 mm
integratedTransferSwitch True
material Aluminium
maxEfficiency 96 %
maxFeedTroughCurrent 2x 100A
maxHumidity 95 %
maximumBatteryChargeCurrent 200 A
numberAcInputs 2
operatingTempRange
parallelOperation True
peakPowerRating 25,000 W
powerAssist True
powerControl True
programmableRelay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
protectionCategory IP21
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
relayTerminal Screw terminal 3-pole
remoteTerminal On / Off / Charger only
remoteTerminalType Screw terminal two pole
safety EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
temperatureSensor Included
threePhaseOperation True
vebusTerminalType Two RJ45 terminals
weight 72 kg
width 488 mm
zeroLoadPower 110 W
zeroLoadPowerAES 75 W
zeroLoadPowerSearch 20 W

Downloads

Brochure

Datasheet

Enclosure dimension

High quality photo

⬇️ Quattro 12V 3000VA 120A 230VAC (front) ⬇️ Quattro 12V 3000VA 120A 230VAC (right) ⬇️ Quattro 12V 3000VA 120A 230VAC (left) ⬇️ Quattro 24V 3000VA 70A 230 VAC (front) ⬇️ Quattro 24V 3000VA 70A 230 VAC (right) ⬇️ Quattro 24V 3000VA 70A 230 VAC (left) ⬇️ Quattro 12V 5000VA 230VAC (front) ⬇️ Quattro 12V 5000VA 230VAC (right) ⬇️ Quattro 12V 5000VA 230VAC (left) ⬇️ Quattro 24V 5000VA 120A 230 VAC (front) ⬇️ Quattro 24V 5000VA 120A 230 VAC (right) ⬇️ Quattro 24V 5000VA 120A 230 VAC (left) ⬇️ Quattro 24V 5000VA 120A 120 VAC (front) ⬇️ Quattro 24V 5000VA 120A 120VAC (right) ⬇️ Quattro 24V 5000VA 120A 120VAC (left) ⬇️ Quattro 48V 5000VA 70-50A 230 VAC (front) ⬇️ Quattro 48V 5000VA 70-50A 230 VAC (right) ⬇️ Quattro 48V 5000VA 70-50A 230 VAC (left) ⬇️ Quattro 24V 8000VA 200A 230V (front) ⬇️ Quattro 24V 8000VA 200A 230V (left) ⬇️ Quattro 24V 8000VA 200A 230V (right) ⬇️ Quattro 48V 8000VA 110A 230V (front) ⬇️ Quattro 48V 8000VA 110A 230V (left) ⬇️ Quattro 48V 8000VA 110A 230V (right) ⬇️ Quattro 48V 10000VA 140A 120V (front) ⬇️ Quattro 48V 10000VA 140A 230V (front) ⬇️ Quattro 48V 10000VA 140A 230V (left) ⬇️ Quattro 48V 10000VA 140A 230V (right) ⬇️ Quattro 48V 15000VA (front) ⬇️ Quattro 48V 15000VA (left) ⬇️ Quattro 48V 15000VA (right) ⬇️ Quattro 48V 15000VA 200A (front) ⬇️ Quattro 48V 15000VA 200A (left) ⬇️ Quattro 48V 15000VA 200A (right) ⬇️ Digital Control Panel

Press release

Product Manual

Promo video

Publication

Quick installation guide

System schematic

⬇️ System example with Quattro ⬇️ Grid-connected Solar system on MultiPlus ⬇️ with a Quattro three phase configuration ⬇️ VE.Bus Three Phase Nobreak system with Fuelcell ⬇️ SLD - AC PV Quattro - backup ⬇️ SLD - MPPT DC - Quattro - backup ⬇️ SLD - Parallel Quattro AC PV grid gen - backup ⬇️ Quattro with DC generator ⬇️ Lynx Ion BMS example with Quattro 8KW-24V-230V ⬇️ 3 Phase VE Bus BMS system 5 pin with 3xQuattro and 4x200Ah 24V Li ⬇️ 3 Phase VE Bus BMS system 4 pin with 3xQuattro and 4x200Ah 24V Li ⬇️ AT-1 split phase 240V to 120-240V with Quattro 240V ⬇️ AT-2 step up 120 to 240V with Quattro 120V ⬇️ AT-3 split phase 120V to 120-240V with Quattro 120V ⬇️ AT-4 stacked inverter 2x120V to 120-240V with 2xQuattro 120V ⬇️ AT-5 split phase 240V to 120-240V with Generator 240V ⬇️ Split Phase Quattro system with Cerbo GX Touch 50 Discover 42-48-6650 Smart Solar MPPT's ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 BYD-LVL Smart Solar MPPTs ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 Blue Nova BN52V 690 36K SmartSolar MPPTs ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 Freedomwon Lite15/12 batteries SmartSolar MPPTs ⬇️ Manual & Drawing Catamaran setup Quattro 5kVA 230VAC 24V Extra Alternators & WS500 ⬇️ RV with Quattro 5kVA 120V generator 600Ah 24V Li-NG Lynx Class-T power in Smart BMS-NG Distributors Cerbo GX Touch 70 SBP-220 MPPT 100/50 Arco Zeus Alternator Orion XS 1400 12V Li battery ⬇️ VE.Direct drawing with IP43 Smart Charger 12/50-1 Inverter 800W 2x150Ah Li-NG smallBMS-NG Cyrix Li charge SBP 220 MPPT 100/50 Orion XS BMV-712 ⬇️ MultiPlus 3kVA 120VAC 12VDC 2x200Ah Li-NG VEBus BMS-NG Cerbo GX touch-50 SBP-220 generator Lynx Distributor MPPT 100-50 Orion-XS BMV-712 ⬇️ Quattro 5kVA 230VAC 24VDC 4x230Ah SC-AGM Cerbo GX touch-50 generator MPPT 100-50 BMV-712 ⬇️ MultiPlus 3kVA 120VAC 12VDC 2x200Ah Li-NG VEBus BMS-NG Cerbo GX touch-50 SBP-220 generator MPPT 100-50 Orion-XS BMV-712
