BlueSolar MPPT 100 15

BlueSolar MPPT 100 15

€62,70
€62,70 €66,00
Zu Produktinformationen springen
BlueSolar MPPT 100 15
  • BlueSolar MPPT 100 15
BlueSolar MPPT 100 15

BlueSolar MPPT 100 15

€62,70
€62,70 €66,00
Auf Lager
SCC010015200R
Terug naar de winkel

Een zonnelader verzamelt energie van uw zonnepanelen en slaat deze op in uw accu's. Met de nieuwste en snelste technologie maximaliseert BlueSolar deze energie-oogst door intelligente aansturing, zodat een volledige oplading in de kortst mogelijke tijd wordt gerealiseerd. BlueSolar houdt de accu in goede conditie en verlengt zo de levensduur.

Specificaties

Kenmerk Waarde
batteryConnectionTerminalType
batteryVoltageAutoSelect 12V / 24V (
chargeAlgorithm Multi-stage adaptive (adjustable)
chargeVoltageAbsorption 14.4V / 28.8V (adjustable)
chargeVoltageFloat 13.8V / 27.6V (adjustable)
colour Blue (RAL 5012)
dataCommunication VE.Direct
dataRetentionPeriod 46 d

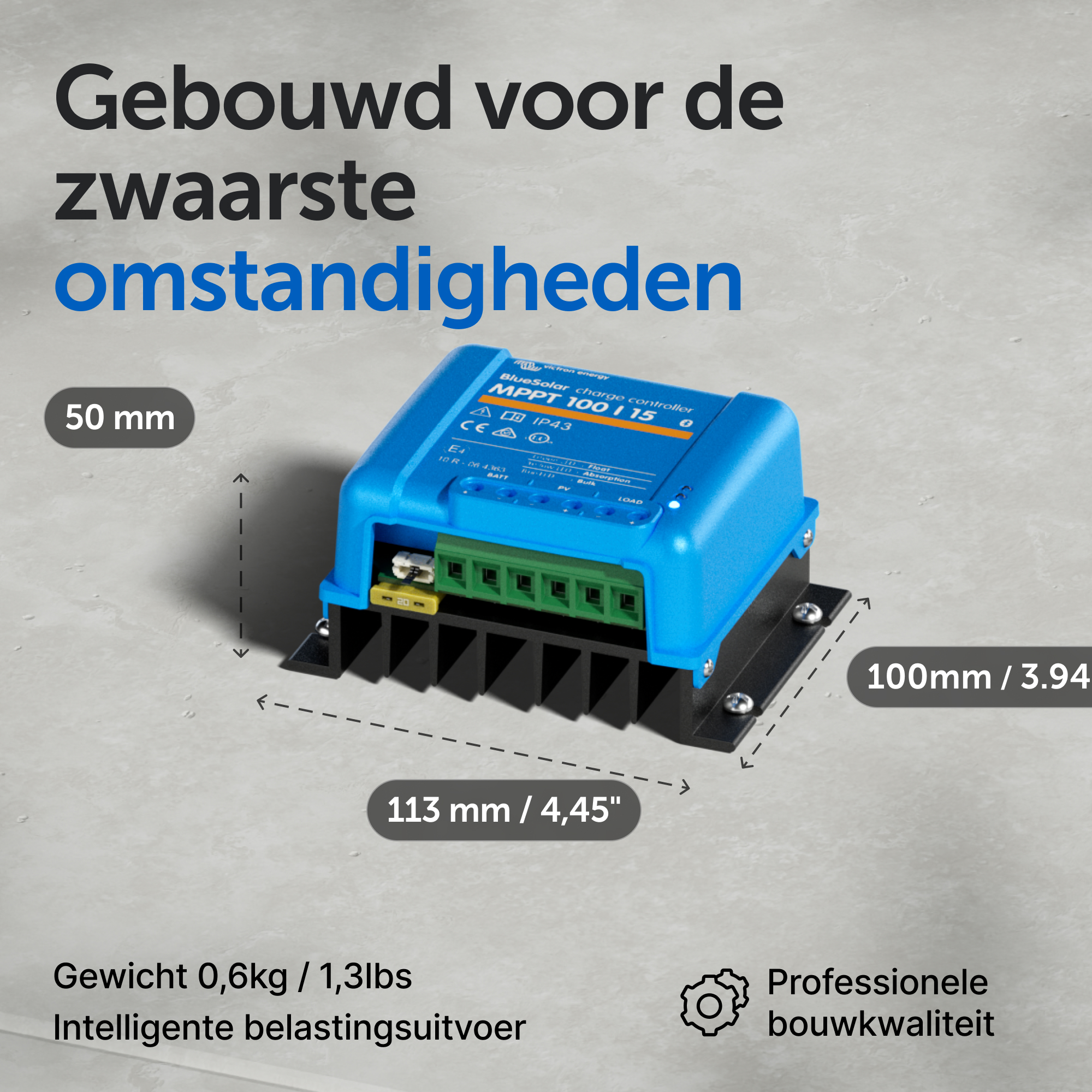

depth 50 mm
height 100 mm
loadConnectionTerminalType
lowVoltageLoadDisconnect 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm
lowVoltageLoadReconnect 13.1V / 26.2V or 14V / 28V or Battery Life algorithm
material
maxContinuousLoadCurrent12 15 A
maxContinuousLoadCurrent24 15 A
maxEfficiency 98 %
maxHumidity 95 %
maxPVOpenCircuitVoltage 100 V
maxPVShortCircuitCurrent 15 A
nominalPVpower12V 220 W
nominalPVpower24V 440 W
numberOfTrackers 1
operatingTempRange
protectionCategory IP22 (connection area),IP43 (electronic components)

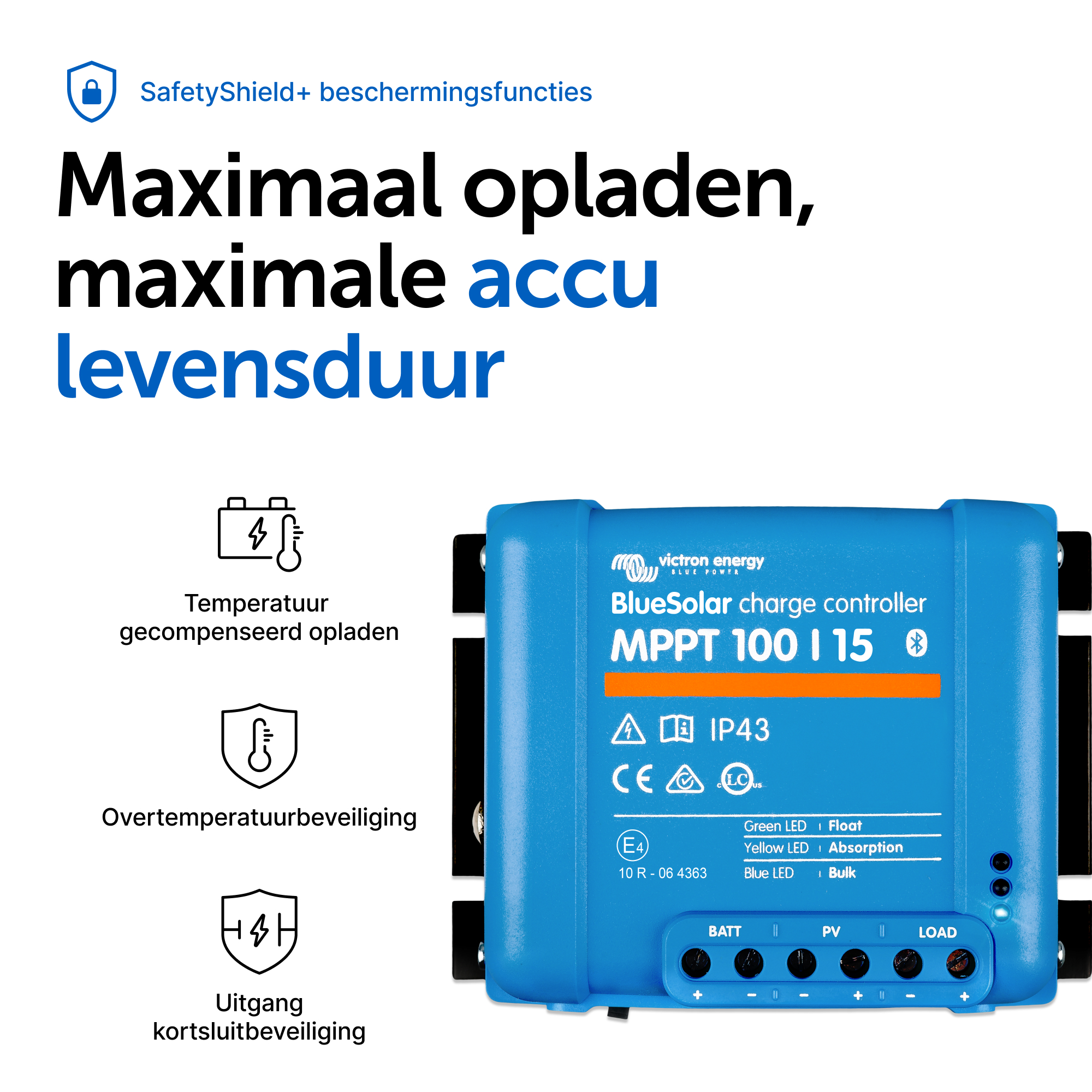

protections Excessive temperature,Overload,Automatic load disconnect,PV reverse polarity
pVConnectionTerminalType
ratedChargeCurrent 15 A
safety CSA C22.2,EN-IEC 62109-2,UL 1741
selfconsumptionLoadOff 12V: 10 mA / 24V: 8 mA
selfconsumptionLoadOn 12V: 19 mA / 24V: 16 mA
startUpPVDCVoltage The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
temperatureCompensation12V
temperatureCompensation24V
weight 0.6 kg
width 113 mm

Downloads

Datasheet

Enclosure dimension

High quality photo

⬇️ BlueSolar MPPT charge controller 75/10 (top) ⬇️ BlueSolar MPPT charge controller 75/10 (front) ⬇️ BlueSolar MPPT charge controller 75/10 (left) ⬇️ BlueSolar MPPT charge controller 75/10 (conn) ⬇️ BlueSolar MPPT charge controller 75/15 (top) ⬇️ BlueSolar MPPT charge controller 75/15 (front) ⬇️ BlueSolar MPPT charge controller 75/15 (left) ⬇️ BlueSolar MPPT charge controller 75/15 (right) ⬇️ BlueSolar MPPT charge controller 75/15 (front) ⬇️ BlueSolar MPPT charge controller 100/15 (top) ⬇️ BlueSolar MPPT charge controller 100/15 (front-angle) ⬇️ BlueSolar MPPT charge controller 100/20 (top) ⬇️ BlueSolar MPPT charge controller 100/20 (front) ⬇️ BlueSolar MPPT charge controller 100/20 (left) ⬇️ BlueSolar MPPT charge controller 100/20 (right) ⬇️ BlueSolar MPPT charge controller 100/20 (connections) ⬇️ BlueSolar MPPT charge controller 100/20-48V (top)

Infographic image

Press release

Promo video

System schematic

Technical information

Video
