BlueSolar MPPT 150 60 Tr

BlueSolar MPPT 150 60 Tr

€323,00
€323,00 €340,00
Zu Produktinformationen springen
BlueSolar MPPT 150 60 Tr
  • BlueSolar MPPT 150 60 Tr
BlueSolar MPPT 150 60 Tr

BlueSolar MPPT 150 60 Tr

€323,00
€323,00 €340,00
Auf Lager
SCC010060200
Terug naar de winkel

Een zonnelader verzamelt energie van uw zonnepanelen en slaat deze op in uw accu's. Met de nieuwste en snelste technologie maximaliseert BlueSolar deze energie-oogst door intelligente aansturing, zodat een volledige oplading in de kortst mogelijke tijd wordt gerealiseerd. BlueSolar houdt de accu in goede conditie en verlengt zo de levensduur.

Specificaties

Kenmerk Waarde
batteryConnectionTerminalType
batteryVoltageAutoSelect 12V / 24V / 48V Auto Select (software tool needed to select 36V)
chargeAlgorithm Multi-stage adaptive (adjustable)
chargeVoltageAbsorption 14.4V / 28.8V / 57.6V (adjustable)
chargeVoltageFloat 13.8V / 27.6V / 55.2V (adjustable)
colour Blue (RAL 5012)
dataCommunication VE.Direct
dataRetentionPeriod 46 d
depth 95 mm
height 185 mm
loadConnectionTerminalType
lowVoltageLoadDisconnect 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm
lowVoltageLoadReconnect 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
material
maxEfficiency 98 %
maxHumidity 95 %
maxPVOpenCircuitVoltage 150 V
maxPVShortCircuitCurrent 150 A
nominalPVpower12V 860 W
nominalPVpower24V 1,720 W
nominalPVpower48V 3,440 W
numberOfTrackers 50
operatingTempRange
programmableRelay
protectionCategory IP43 (electronic components),IP22 (connection area)

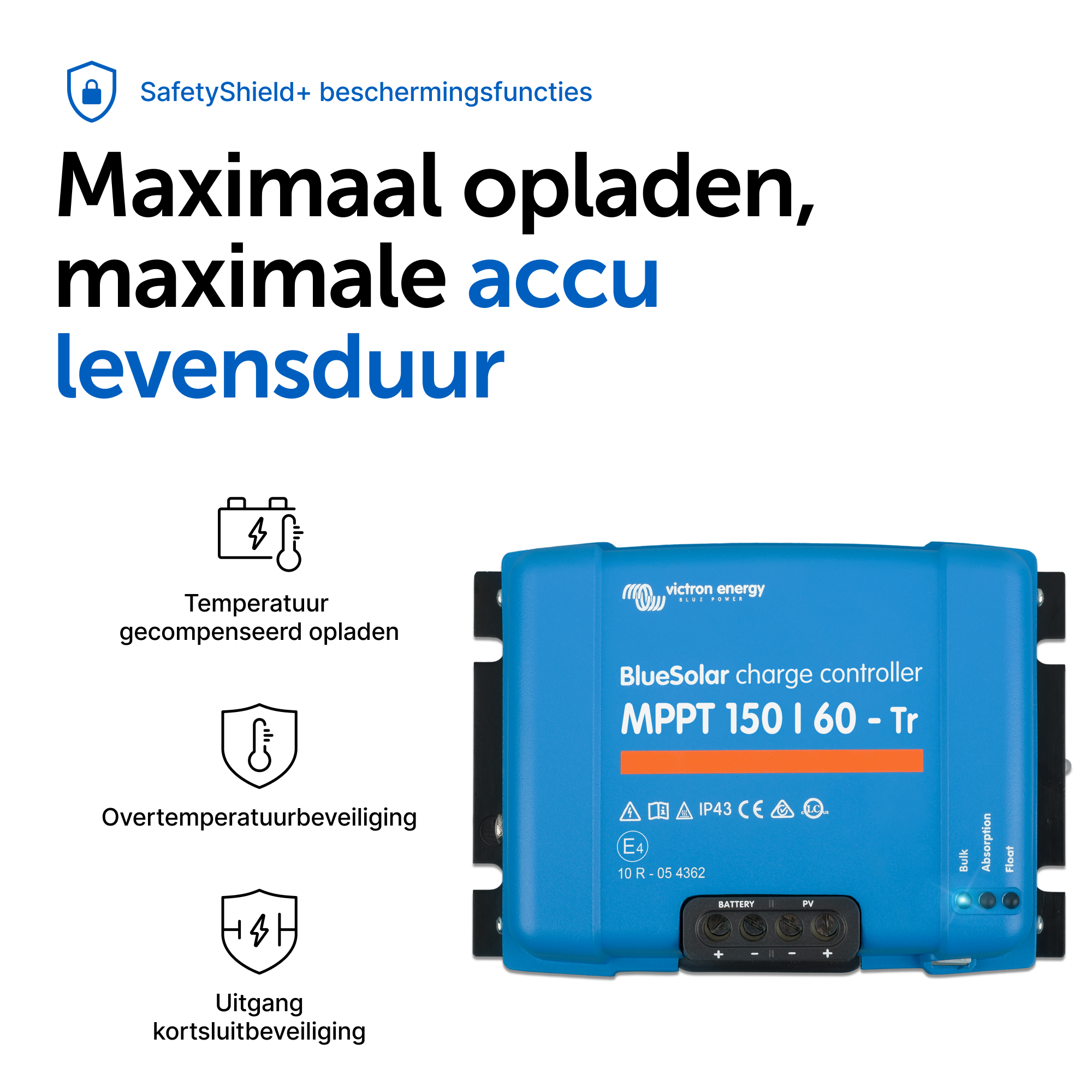

protections Output short-circuit,Excessive temperature,PV reverse polarity
pVConnectionTerminalType
ratedChargeCurrent 60 A
relayTerminalConnection1
remoteOnOffTerminalConnection
safety CSA C22.2,EN-IEC 62109-1,UL 1741
selfConsumption 10mA
startUpPVDCVoltage The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
temperatureCompensation12V
temperatureCompensation24V
temperatureCompensation48V
temperatureSensor
weight 3 kg
width 250 mm

Downloads

Datasheet

Enclosure dimension

High quality photo

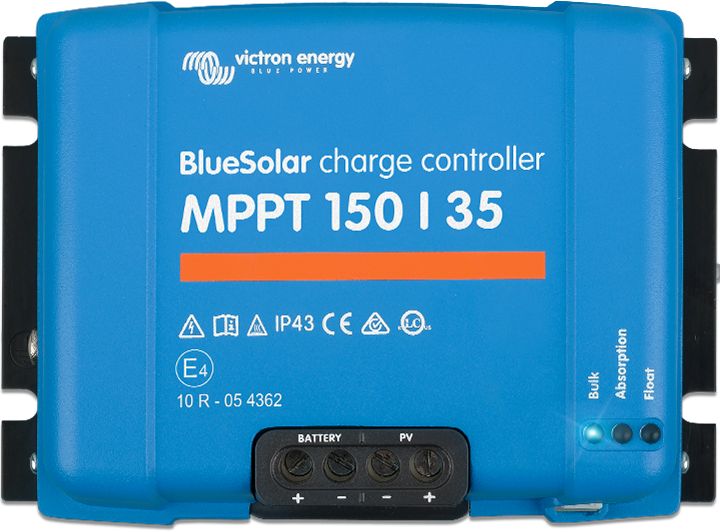

⬇️ BlueSolar MPPT charge controller 150/35 (top) ⬇️ BlueSolar MPPT charge controller 150/35 (front) ⬇️ BlueSolar MPPT charge controller 150/35 (left) ⬇️ BlueSolar MPPT charge controller 150/35 (right) ⬇️ BlueSolar MPPT charge controller 150/35 (conn) ⬇️ BlueSolar MPPT charge controller 150 45 (top) ⬇️ BlueSolar MPPT charge controller 150 45 (front-angle) ⬇️ BlueSolar charge controller MPPT 150 45 (right) ⬇️ BlueSolar MPPT charge controller 150 45 (left) ⬇️ BlueSolar MPPT charge controller 150 45 (front) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (top) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (front) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (left) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (right) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (top) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (front) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (left) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (right) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (top) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (front) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (right) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (left) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (connections)

Infographic image

Press release

Product Manual

Promo video

Technical information

Video
