BlueSolar MPPT 150 35

BlueSolar MPPT 150 35

€170,05
€170,05 €179,00
Zu Produktinformationen springen
BlueSolar MPPT 150 35
  • BlueSolar MPPT 150 35
BlueSolar MPPT 150 35

BlueSolar MPPT 150 35

€170,05
€170,05 €179,00
Auf Lager
SCC020035000
Terug naar de winkel

Een zonnelader verzamelt energie van uw zonnepanelen en slaat deze op in uw accu's. Met de nieuwste en snelste technologie maximaliseert BlueSolar deze energie-oogst door intelligente aansturing, zodat een volledige oplading in de kortst mogelijke tijd wordt gerealiseerd. BlueSolar houdt de accu in goede conditie en verlengt zo de levensduur.

Specificaties

Kenmerk Waarde
batteryConnectionTerminalType
batteryVoltageAutoSelect 12V / 24V / 48V (Auto Select)
chargeAlgorithm Multi-stage adaptive (adjustable)
chargeVoltageAbsorption 14.4V / 28.8V / 57.6V (adjustable)
chargeVoltageFloat 13.8V / 27.6V / 55.2V (adjustable)
colour Blue (RAL 5012)
dataCommunication VE.Direct

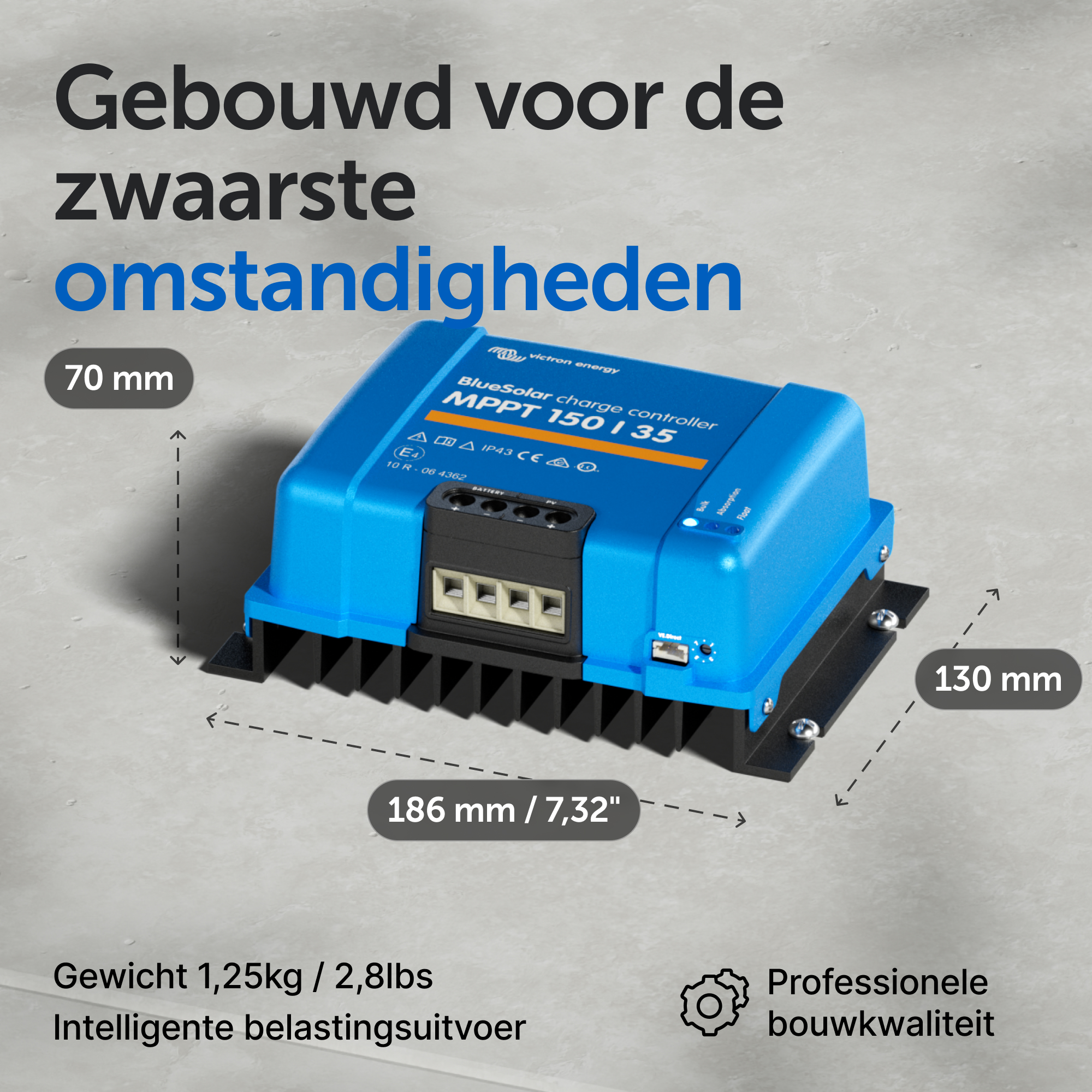

depth 70 mm
height 130 mm
loadConnectionTerminalType
material
maxEfficiency 98 %
maxHumidity 95 %
maxPVOpenCircuitVoltage 150 V
maxPVShortCircuitCurrent 40 A
nominalPVpower12V 500 W
nominalPVpower24V 1,000 W
nominalPVpower48V 2,000 W
numberOfTrackers 1
operatingTempRange
programmableRelay
protectionCategory IP22 (connection area),IP43 (electronic components)

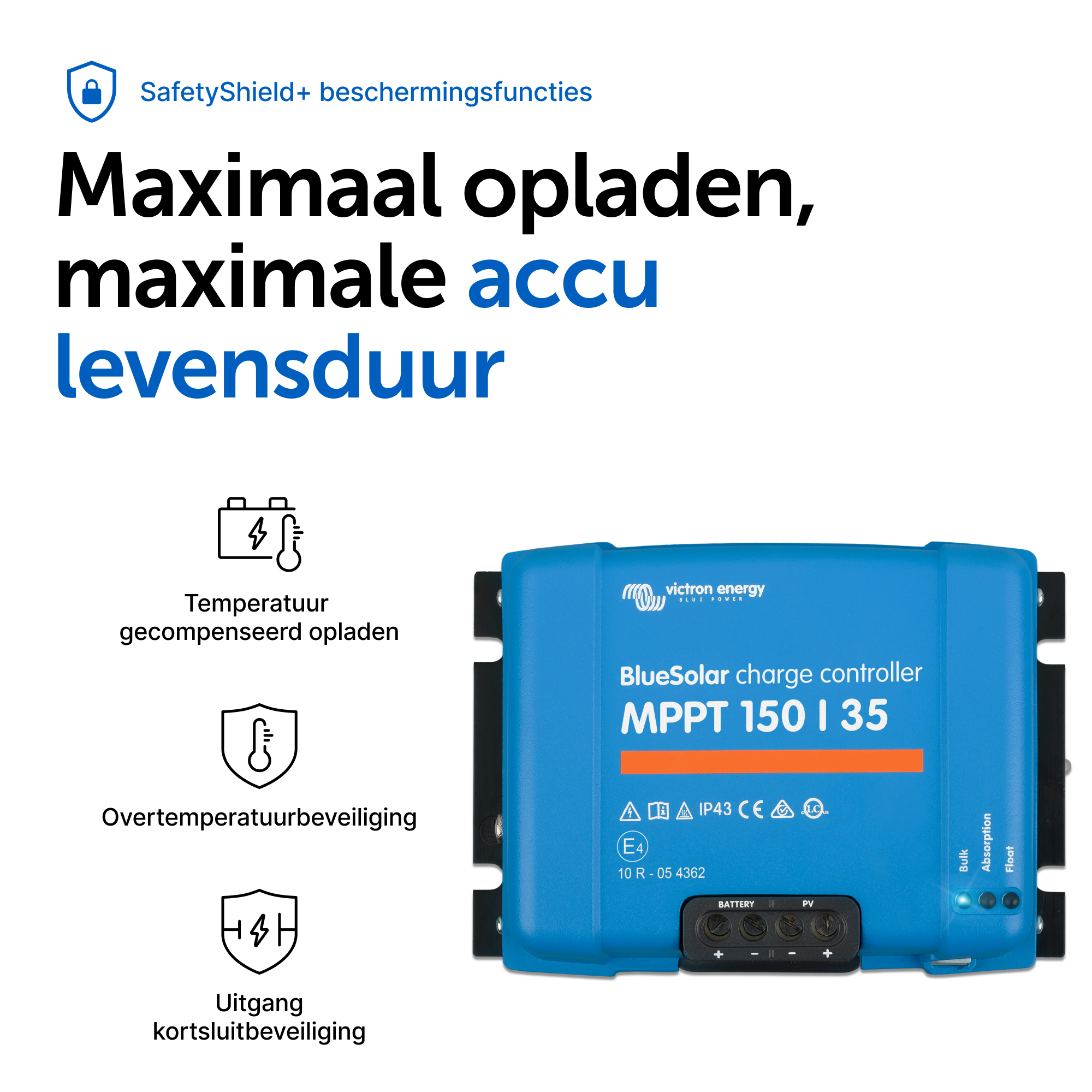

protections PV reverse polarity,Output short-circuit,Excessive temperature
pVConnectionTerminalType
ratedChargeCurrent 35 A
relayTerminalConnection1
remoteOnOffTerminalConnection
safety CSA C22.2,EN-IEC 62109-1,UL 1741
selfConsumption 12V: 20mA, 24V: 15mA, 48V: 10mA
temperatureCompensation12V
temperatureCompensation24V
temperatureCompensation48V
temperatureSensor
weight 1.25 kg
width 186 mm

Downloads

Datasheet

Enclosure dimension

High quality photo

⬇️ BlueSolar MPPT charge controller 150/35 (top) ⬇️ BlueSolar MPPT charge controller 150/35 (front) ⬇️ BlueSolar MPPT charge controller 150/35 (left) ⬇️ BlueSolar MPPT charge controller 150/35 (right) ⬇️ BlueSolar MPPT charge controller 150/35 (conn) ⬇️ BlueSolar MPPT charge controller 150 45 (top) ⬇️ BlueSolar MPPT charge controller 150 45 (front-angle) ⬇️ BlueSolar charge controller MPPT 150 45 (right) ⬇️ BlueSolar MPPT charge controller 150 45 (left) ⬇️ BlueSolar MPPT charge controller 150 45 (front) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (top) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (front) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (left) ⬇️ BlueSolar MPPT charge controller 150/60-Tr (right) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (top) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (front) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (left) ⬇️ BlueSolar MPPT charge controller 150/70-Tr (right) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (top) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (front) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (right) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (left) ⬇️ BlueSolar MPPT charge controller 150/100-Tr VE.Can (connections)

Infographic image

Press release

Product Manual

Promo video

Technical information

Video
