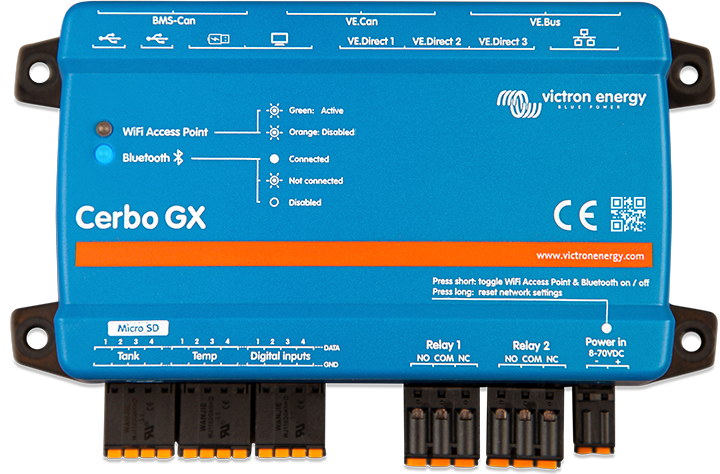

Cerbo GX MK2

Cerbo GX MK2

€251,75
€251,75 €265,00
Skip to product information
Cerbo GX MK2
  • Cerbo GX MK2
Cerbo GX MK2

Cerbo GX MK2

€251,75
€251,75 €265,00
In stock
BPP900450110
Back to the store

This brand-new communication centre gives you perfect control over your system wherever you are, allowing you to maximise performance. Simply connect via our Victron Remote Management ( VRM ) portal, or access it directly via the separate GX Touch , a multi-function display (MFD), or our VictronConnect app thanks to its built-in Wi-Fi access point. This latest addition to the GX series combines the best of connectivity and redefines smart energy solutions in every way.

Watch the new video that explains everything there is to know about installing the new Cerbo GX & GX Touch 50.

Specifications

Feature Value
automotiveDirective ECE R10-6
Bluetooth Yes
bmsCan
color Blue (RAL 5012)
depth 48 mm
digitalInputs 4
emission EN 3011489-1,EN 3011489-17
Ethernet 10/100 RJ45 socket - isolated except shield
height 78 mm
mounting Wall or DIN rail 35mm (optional ac
operatingTempRange
powerDraw 2.8 W
powerDrawTouch 3.8 W
powerDrawTouchOn 4.8 W
protection Category IP20
relays 2
relayType NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
resistiveTankLevelInputs 4
safety IEC 62368-1
supplyVoltageRange [8, 70] V
temperatureSenseInput 4
USB 3 USB Host ports
veBus 2 paralleled RJ45 sockets
veCan Yes VE.Can 1 isolated VE.Can 2 non-isolated
veDirect 3 (max. possible VE.Direct devices: 15)
width 154 mm
Wi-Fi Built-in

Downloads

Datasheet

Enclosure dimension

High quality photo

Promo video

System schematic

⬇️ Split Phase Quattro system with Cerbo GX Touch 50 Discover 42-48-6650 Smart Solar MPPTs ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 BYD-LVL Smart Solar MPPTs ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 Blue Nova BN52V 690 36K SmartSolar MPPTs ⬇️ 3 Phase Quattro system with Cerbo GX Touch 50 Freedomwon Lite15/12 batteries SmartSolar MPPTs ⬇️ Quattro 5kW 230VAC 24VDC 600-800Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion-Tr Smart ⬇️ MultiPlus-II 3kW 2x120VAC 12VDC 400Ah Li VE.Bus BMS Cerbo GX Touch generator MPPT Orion-Tr Smart ⬇️ US-VAN Drawing VEBus BMS MultiPlus 3KW DMC 400Ah Li Cerbo SBP 100A & 65A SmartShunt MPPT 100-50 OrionTr ⬇️ 3 Phase 5kW24V Quattro-II system VEBus BMS 2xSBP 4x200Ah Li Cerbo GX touch 50 MPPT Generator ⬇️ Van/Motorhome Manual & Drawing 3 monitoring setups MultiPlus 3kVA 12V 230V 50Hz Drop-in Li ⬇️ US Van Manual & Drawing VEBus BMS V2 MultiPlus-II 3kVA 12V 120V 60Hz ⬇️ Manual & Drawing Catamaran setup Quattro 5kVA 230VAC 24V Extra Alternators & WS500 ⬇️ Manual & Drawing Quattro-II 5kVA 230VAC 24VDC 600-800Ah Li Lynx Smart BMS distributors Cerbo generator MPPT Orion Tr Smarts ⬇️ Manual & Drawing Multi RS Solar 48 6000 Smart LiFePO4 48V 200Ah Lynx Smart BMS Cerbo GX touch 70 ⬇️ Manual & Drawing Multi RS Solar 48 6000 DT Smart LiFePO4 48V 400Ah smallBMS SmartSolar MPPT RS Cerbo GX Touch 50 ⬇️ Manual and Drawing MultiPlus-II 15kVA 3Phase MPPT 250-100 Lynx Power In Distributors Cerbo GX Touch GX LTE 4G BYD Flex Lite ⬇️ Genless monohull with Victron MultiPlus Lynx Smart BMS NG 600Ah NG Li HP Alternator Wakespeed WS500-Pro regulator ⬇️ Genless catamaran with Victron MultiPlus paralleled Lynx Smart BMS NG 800Ah NG Li HP Alternators Wakespeed WS500-Pro regulators ⬇️ Genless monohull with Victron MultiPlus Lynx Smart BMS NG 600Ah NG Li HP Alternator ARCO Zeus regulator ⬇️ Genless catamaran with Victron MultiPlus paralleled Lynx Smart BMS NG 800Ah NG Li HP Alternators ARCO Zeus regulators ⬇️ Quattro-II 5kVA 230VAC 24VDC 600Ah Li NG Lynx Smart BMS NG distributors Cerbo GX touch generator MPPT Extra Alternator Zeus regulator ⬇️ 1.6kVA 12V MultiPlus 230V 2x150Ah NG-Li VE.Bus BMS NG BMV Cerbo GX Touch 50 SBP-220 MPPT 100/30 Orion-Tr Smart ⬇️ RV with Quattro 5kVA 120V generator 600Ah 24V Li-NG Lynx Class-T power in Smart BMS-NG Distributors Cerbo GX Touch 70 SBP-220 MPPT 100/50 Arco Zeus Alternator Orion XS 1400 12V Li battery ⬇️ RV with dual MultiPlus-II 5kVA split phase 2x600Ah 24V Li-NG parallel Lynx Smart BMS-NG Class-T Power In Distributors Cerbo GX Touch 70 SBP-220 MPPT 100/50 Arco Zeus Alternator Orion XS 1400 12V Li battery ⬇️ VE.Direct drawing with IP43 Smart Charger 12/50-1 Inverter 800W 2x150Ah Li-NG smallBMS-NG Cyrix Li charge SBP 220 MPPT 100/50 Orion XS BMV-712 ⬇️ MultiPlus-II 3kVA 2x120VAC 12VDC 2x200Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX Touch-50 SBP-220 generator MPPT 100/50 Orion XS ⬇️ MultiPlus-II 3kVA 2x120VAC 12VDC 2x200Ah Li-NG VEBus BMS-NG Lynx Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion XS BMV-712 ⬇️ MultiPlus-II 3kVA 120VAC 12VDC 2x200Ah Li-NG VE.Bus BMS-NG Cerbo GX Touch-50 SBP-220 generator MPPT 100/50 Orion XS BMV-712 ⬇️ MultiPlus-II 3kVA 120VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX Touch-50 SBP-220 generator MPPT 100/50 Orion XS ⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x200Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion XS ⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion Tr Smarts ⬇️ MultiPlus-II 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 extra Alternator WS500-Pro ⬇️ 1.2kVA MultiPlus 230V 2x125Ah SC-AGM Cerbo GX Touch 50 Argo Fet MPPT 100-30 BMV-712 ⬇️ MultiPlus 3kVA 120VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100-50 Orion Tr smart ⬇️ MultiPlus 3kVA 230VAC 12VDC 2x200Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100-50 Orion-XS ⬇️ MultiPlus 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100-50 Orion Tr Smarts ⬇️ MultiPlus 3kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100-50 extra Alternator WS500-Pro ⬇️ Narrow Boat MultiPlus 3kVA 230VAC 12VDC 2x200Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 MPPT 100-50 extra Alternator WS500-Pro Bow thruster Galvanic isolator BMV-712 ⬇️ Quattro 5kVA 230VAC 24VDC 4x230Ah SC-AGM Cerbo GX touch-50 generator MPPT 100-50 BMV-712 ⬇️ Quattro-II 5kVA 230VAC 24VDC 4x230Ah SC-AGM Cerbo GX touch-50 generator MPPT 100-50 BMV-712 ⬇️ Quattro 5kVA 120VAC 24VDC 4x230Ah SC-AGM Cerbo GX touch-50 generator MPPT 100/50 BMV-712 ⬇️ Quattro 5kVA 120-240VAC 24VDC split phase 3x200Ah Li-NG VE.Bus BMS-NG Class-T fuses Distributor Cerbo GX touch-70 SBP-220 generator MPPT BMV Orion XS ⬇️ Quattro 5kVA 120VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion ⬇️ Quattro 5kVA 230VAC 12VDC 2x300Ah Li-NG Lynx Class-T Smart BMS-NG Distributor Cerbo GX touch-50 SBP-220 generator MPPT 100/50 Orion

Technical information
