Inverter RS 48 6000 230V Smart

Inverter RS ​​48 6000 230V Smart

€1.171,35
€1.171,35 €1.233,00
Skip to product information
Inverter RS 48 6000 230V Smart
  • Inverter RS 48 6000 230V Smart
Inverter RS ​​48 6000 230V Smart

Inverter RS ​​48 6000 230V Smart

€1.171,35
€1.171,35 €1.233,00
In stock
PIN482600000
Back to the store

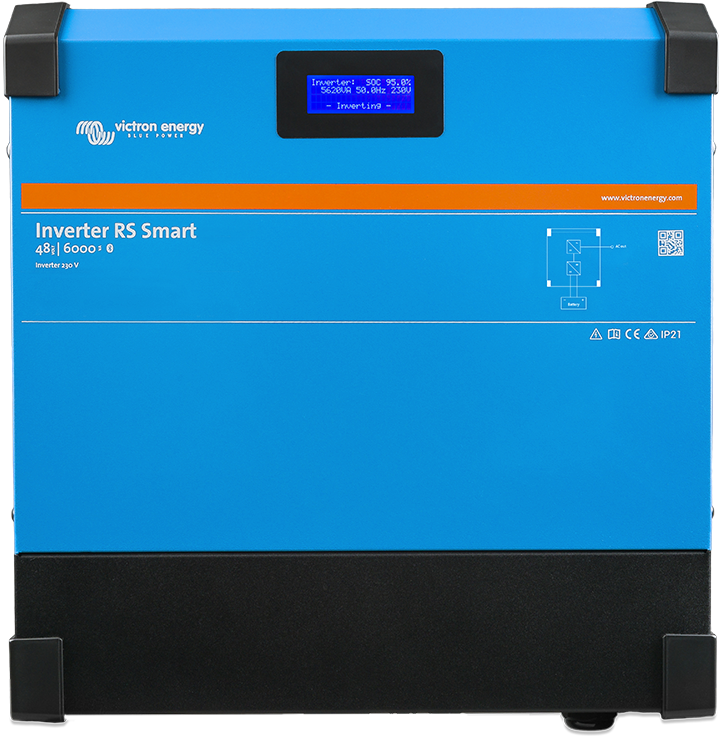

The Inverter RS ​​Smart is a powerful 48 VDC, 6 kVA 230 VAC inverter. It features a modern design and high-frequency technology, weighs only 11 kg, and offers excellent efficiency, low standby power, and very quiet operation.

The inverter is equipped with a display to show battery and inverter details. These parameters can also be viewed via Bluetooth using the VictronConnect app. Furthermore, the inverter has a VE.Direct and a VE.Can port for connecting to a GX device for system monitoring.

Specifications

Feature Value
acConnection
aCOutputVoltage 230 V
batteryConnection M8 bolts
batteryTemperatureSensor Included
batteryVoltageNominal 48 V
batteryVoltageSense True
Bluetooth
chargeVoltageAbsorption 57.6 V
chargeVoltageFloat 55.2 V
chargeVoltageRange [36, 60] V
color Blue (RAL 5012) and Black (RAL 9017)
communicationPort Bluetooth, VE.Direct, VE.Can
contPowerW25a 4,800 W
contPowerW25b 5,300 W
contPowerW40 4,500 W
contPowerW65 3,000 W
Cooling True
dCInputVoltageRange [38, 62] V
depth 125 mm
emissionImmunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
frequency 50 Hz
fully programmable True
generalPurposePort Yes, 2x
height 425 mm
material Steel
maxAcCoupledSolar 5,000 W
maxAltitude 2,000 m
maxChargeCurrent 88 A
maxEfficiency 96.5%
maxHumidity 95%
MaximumContInvCurrent 25 A
operatingTempRange
parallel3phase 12 parallel units supported, 3 phase supports 4 units per phase
peakPowerRating3s 9,000 W
peakPowerRating4m 7,000 W
programmableRelay DC rating: 4A up to 35VDC and 1A up to 70VDC
protection Category IP21
protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output
remoteOnOff True
safety EN-IEC 60335-1, EN-IEC 62109-1, EN-IEC 62109-2
ShortCircuitCurrent 50 A
weight 11 kg
width 440 mm
zeroLoadPower 20 W

Downloads

Datasheet

Enclosure dimension

High quality photo

Promo video
